Hinge (Hardware Accessaries)

HINGE for LCD

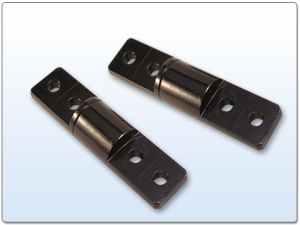

HINGE for LCD picture 1

Torque specification :
18~22kgf.cm
Material:
SAE1215 ( RoHS compliant)
Test content:
tested reciprocal angle: 240°, test speed: 3600deg°/min
Service life:
5,000 times, loss within 15%
Surface treatment :
nickel plated ( RoHS compliant)



HINGE for LCD picture 2

Torque specification :
40.0±3.0kgf.cm
Material:
SAE1215 ( RoHS compliant)
Test content:
tested reciprocal angle: 240°, test speed: 3600deg°/min
Service life:
5,000 times, loss within 15%
Surface treatment :
nickel plated ( RoHS compliant)

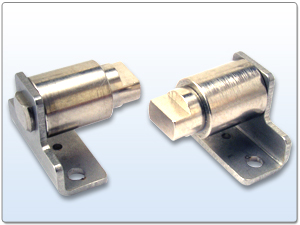

HINGE FOR PDA

HINGE FOR PDA

Torque specification :
5.0~7.0kgf.cm
Material:
SAE1215 ( RoHS compliant)
Test content:
tested reciprocal angle: 240°, test speed: 3600deg°/min
Service life:
20,000 times, loss within 15%
Surface treatment :
nickel plated ( RoHS compliant)


HINGE FOR DV

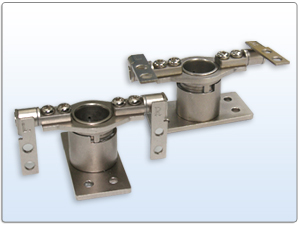

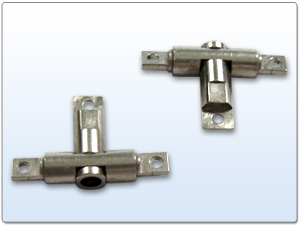

HINGE FOR DV picture 1HINGE FOR DV picture 2

Torque specification :
0.3~0.5kgf.cm
Material:
SAE1215 ( RoHS compliant)
Test content:
tested reciprocal angle: 240°, test speed: 3600deg°/min
Service life:
20,000 times, loss within 15%
Surface treatment :
nickel plated ( RoHS compliant)
